LED Modules

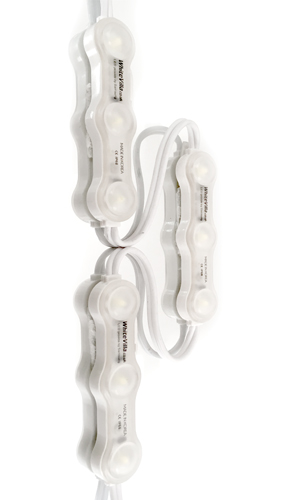

3 Bulb Circular (Provided By Samsung)
| Dimension | 68L X 15W X 8.1H mm |
| Colour | White |
| Operating Power | DC 12V |
| Power Consumption | 1.14W, 0.06A |
LED Spec | 160° Angle Made in Korea |
| LED Pitch | 25mm |
| Module Connection & Cuttability | Wire to Wire Series connection, every module |
| Lumen | 102.95 lm |
| Luminous intensity(mcd) | 20000 |
| Operating Temperature | -20°C~ 70°C |
| Waterproofing Rate | IP68 |
| Wire Lenght | 80mm |
| Wire & Case Materials | AWG 18 & ABS |
| Recommended Channel Height | Min. 80mm |

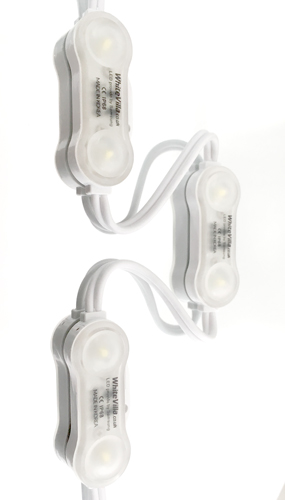

2 Bulb (Provided By Samsung)
| Dimension | 43L X 15W X 8.1H mm |
| Colour | White |
| Operating Power | DC 12V |
| Power Consumption | 0.72W |
LED Spec | 160° Angle Made in Korea |
| LED Pitch | 65mm |
| Module Connection & Cuttability | Wire to Wire Series connection, every module |
| Lumen | 53 lm |
| Luminous intensity(mcd) | 10200 |
| Operating Temperature | -20°C~ 60°C |
| Waterproofing Rate | IP68 |
| Wire Lenght | 80mm |
| Wire & Case Materials | UL 18AWG Pair |
| Recommended Channel Height | Min. 80mm |

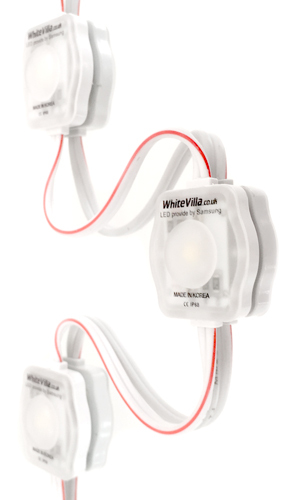

1 Bulb white (provided by Samsung)
| Dimension | 26L X 23W X 7.5H mm |
| Colour | White |
| Operating Power | DC 12V |
| Power Consumption | 1.14W |
LED Spec | 170° Angle Made in Korea |
| Module Connection & Cuttability | Wire to Wire Series connection, every module |
| Lumen | 135lm |
| Luminous intensity(mcd) | 23500 |
| Operating Temperature | -22°C~ 158°C |
| Waterproofing Rate | IP68 |
| Wire Lenght | 75mm |
| Wire & Case Materials | UL 18AWG Pair |
| Recommended Channel Height | Min. 80mm |

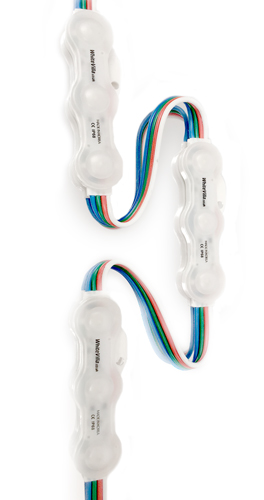

RGB 3 Bulb
| Dimension | 72L X 18W X 8.1H mm |
| Colour | RGB |
| Operating Power | DC 12V |
| Power Consumption | 0.72W |
LED Spec | 160° Angle Made in Korea |
| Module Connection & Cuttability | Wire to Wire Series connection, every module |
| Lumen | 98 lm |
| Luminous intensity(mcd) | 17900 |
| Operating Temperature | -20°C~ 60°C |
| Waterproofing Rate | IP68 |
| Wire Lenght | 95mm |
| Wire & Case Materials | AWG 18 & ABS |
| Recommended Channel Height | Min. 80mm |

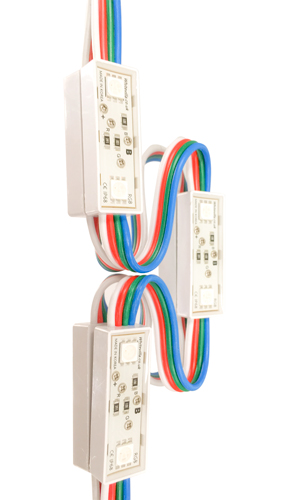

RGB 2 Bulb
Dimension | 38L X 13W X 7.5H mm |
| Colour | RGB |
| Operating Power | DC 12V |
| Power/Current Dissipation | 0.48W / 0.04A |
| LED Spec | 120° Angle, Up to 50000hr, Made in Korea |
| LED Pitch | 23mm |
| Module Connection & Cuttability | Wire to Wire Series connection, every module |
| Luminous Flux | R: 1.340 G: 2.670 B: 0.670 |
| Operating Temperature | -30°C~ 70°C |
| Waterproofing Rate | IP67 |
| Wire Lenght | 85mm |
| Wire & Case Materials | AWG & ABS |
| Recommended Channel Height | Min. 80mm |

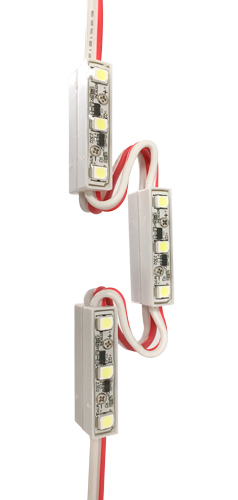

Mini LED
Dimension | 29L X 6W X 86 mm |
| Colour | White |
| Operating Power | DC 12V |
| Power/Current Dissipation | 0.24W / 0.02A |
| LED Spec | 120° Angle, Up to 50000hr, Made in Korea |
| LED Pitch | 11mm |
| Module Connection & Cuttability | Wire to Wire Series connection, every module |
| Luminous Flux (CD) | 12-14 |
| Operating Temperature | -30°C~ 50°C |
| Waterproofing Rate | IP67 |
| Wire Lenght | 32mm |
| Wire & Case Materials | AWG & ABS |
| Recommended Channel Height | Min. 80mm |

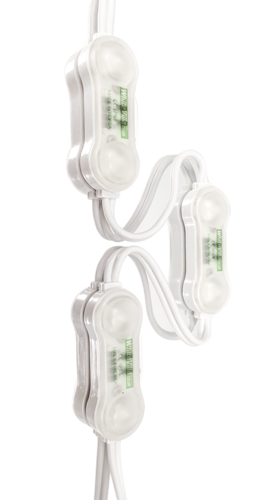

2 Bulb C (Colour)
| Dimension | 43L X 15W X 8.1H mm |
| Colour | GREEN & YELLOW |
| Operating Power | DC 12V |
| Power Consumption | 0.72W |
LED Spec | 160° Angle Made in Korea |
| LED Pitch | 25mm |
| Module Connection & Cuttability | Wire to Wire Series connection, every module |
| Operating Temperature | -20°C~ 60°C |
| Waterproofing Rate | IP68 |
| Wire Lenght | 80mm |
| Wire & Case Materials | UL 18AWG Pair |
| Recommended Channel Height | Min. 80mm |
