VillaBOND Aluminium Composite Panel

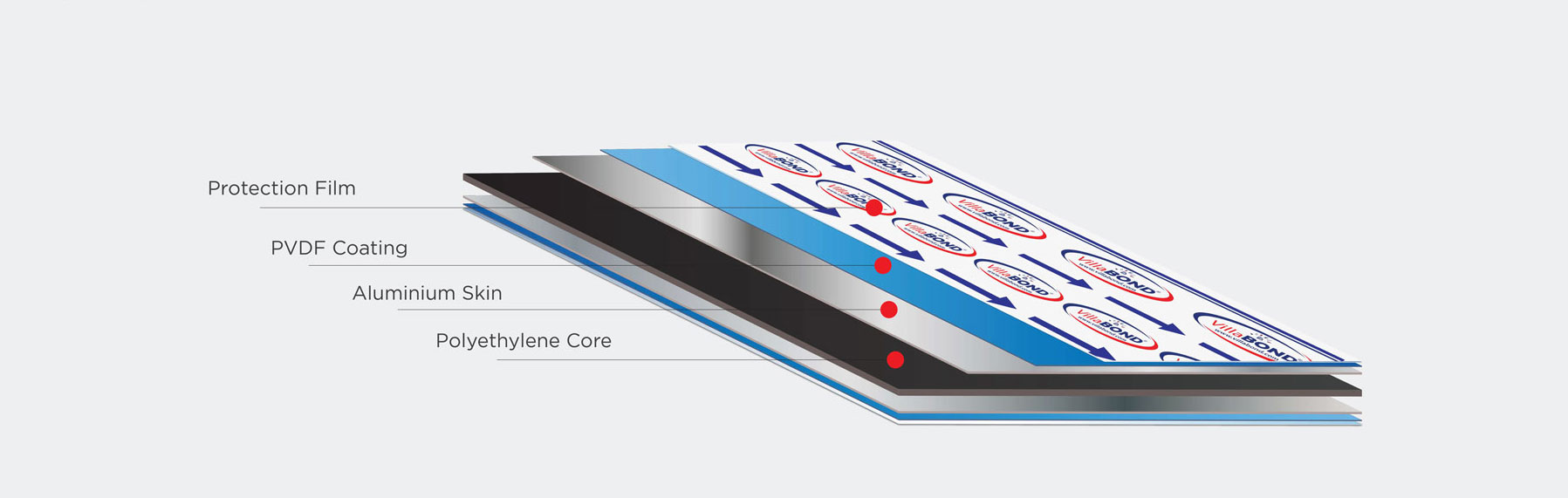

VillaBOND® composite panel is a type of flat panel that consists of two thin Aluminium sheets bonded to a non-aluminium core. The top and the bottom layers are covered Aluminium skin (standard thickness is 0.30mm), the centre core is low density polyethylene.

VillaBOND Colours

Gloss
Matt
Brushed
Special Finish
Digital - Hoarding Panel
  • Pure White
    Pure White
  • Traffic Red RAL 3020
    Traffic Red RAL 3020
  • Wine Red RAL 3002
    Wine Red RAL 3002
  • Burgundy RAL 3004
    Burgundy RAL 3004
  • Yellow RAL 1003
    Yellow RAL 1003
  • Ivory RAL 1015
    Ivory RAL 1015
  • Dark Grey RAL 7011
    Dark Grey RAL 7011
  • Anthracite RAL 7016
    Anthracite RAL 7016
  • Dark Violet
    Dark Violet
  • Light Green RAL 6038
    Light Green RAL 6038
  • Sky Blue
    Sky Blue
  • Turquoise
    Turquoise
  • Continental Blue
    Continental Blue
  • Olive Green RAL 6003
    Olive Green RAL 6003
  • Dark Blue RAL 5013
    Dark Blue RAL 5013
  • Black
    Black
  • White RAL 9010
    White RAL 9010
  • Black
    Black
  • Traffic Red RAL 3020
    Traffic Red RAL 3020
  • Burgundy RAL 3004
    Burgundy RAL 3004
  • Yellow RAL 1003
    Yellow RAL 1003
  • Ivory RAL 1015
    Ivory RAL 1015
  • Light Grey RAL 7046
    Light Grey RAL 7046
  • Violet RAL 4008
    Violet RAL 4008
  • Pink RAL 4010
    Pink RAL 4010
  • Dark Brown RAL8011
    Dark Brown RAL8011
  • Light Brown RAL8002
    Light Brown RAL8002
  • Dark Green RAL 6005
    Dark Green RAL 6005
  • Mint Green RAL 6029
    Mint Green RAL 6029
  • Traffic Blue RAL 5017
    Traffic Blue RAL 5017
  • Brushed Silver
    Brushed Silver
  • Brushed Gold
    Brushed Gold
  • Light Wood
    Light Wood
  • Dark Wood
    Dark Wood
  • Silver Mirror
    Silver Mirror
  • Gold Mirror
    Gold Mirror
  • Digital
    Digital

Order a catalog

VillaBOND® properties

PROPERTYUNITVillaBOND
Thicknessmm3
Aluminium Thicknessmm0.3
WeightKg/m24.1
Sound Absorption NRC
0.05

Sound Absorption Rw db


24

Thermal Performance R Values


0.0057

Peel Strength 180o

N/mm>5

Toughness Of Coating

2Tno cracking

Bending Strength

Kg/CM21.344

Bending Moment

Kg/CM2537

Adhesive Strength

Kg/in18
Bending Elastic ModulesKg/mm23.746


VillaBOND®  Digital properties

PROPERTYUNITVillaBOND
Thicknessmm3
Aluminium Thicknessmm0.2

Features

  • Light Weight
  • Flat surface, perfect for printing and vinyl applications
  • Fabricate and maintenance easily
  • Easy to cut, fold and bend
  • 26 different colours and 6 special finishes

Applications

  • Exterior and interior signage
  • Cladding
  • Sound and heat insulation
  • etc
